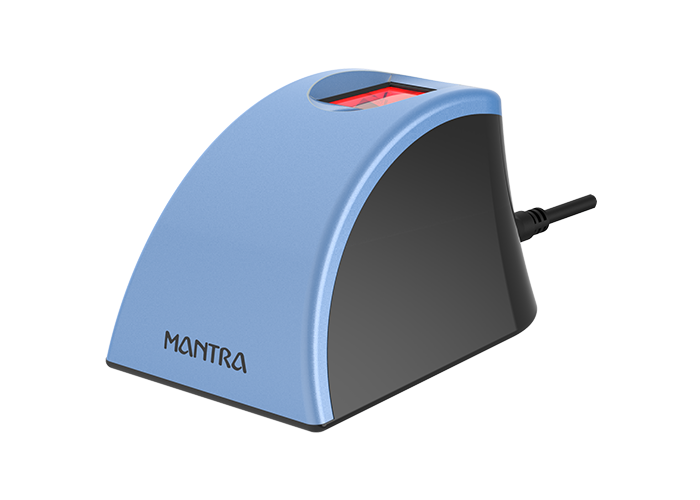

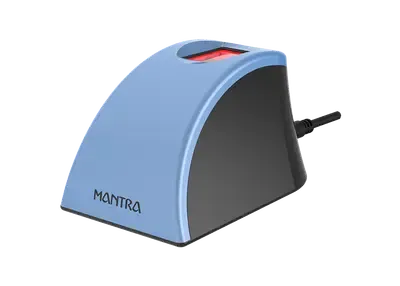

The Mantra MFS110 is an L1 biometric device and it is better than traditional devices in its class, delivering crypto operation with secure memory and precise biometric matching, making it perfect for ID verification and IT security. Our L1 fingerprint reader is a secure, rugged fingerprint scanner that ensures consistent image quality and precise results. This L1 fingerprint scanner is designed for many biometric-based identification applications. It is certified as FBI PIV-071006 as a compliant fingerprint scanner. This device has IP54 certification, which indicates that it is protected from dust and splashing water.
The L1 scanner is based on optical technology, which assures high-quality fingerprint scanning even when dusty, dirty, or rough fingers are scanned. developed for law enforcement, IT security, border administration, and national ID programs. Its advanced cryptography and ergonomic design make it an excellent performing and secure L1 biometric device for field operations.
MFS110 feature exquisite specifications that are designed to address the modern-day requirements of individual identification and authentication.
Parameters | Specification |
---|---|
Fingerprint Sensor Type | : Optical Sensor |
Spatial Resolution | : 500 DPI +/- 2% |
Platen Area | : 14.0 mm x 17.0 mm |
Image size | : 276 x 336 Pixels |
Image Grayscale | : 256 (8 - Bit Gray Level) |
Light Source | : Red LED |
Maximum Acquisition time (Placement to Template) | : < 2 Sec |
Approx. Dimension (L x W x H) | : 61(L) x 91(W) x 54(H) mm |
Approx. Weight | : 0.140 kg |
Capture mode | : Auto capture with built-in quality check(incorporates NIST quality considerations) |
Parameters | Specification |
---|---|
Crypto operation | : Hardware base RSA2048 Key Generation, AES-GCM-256, SHA-256, TRNG support |
Secure Memory | : TEE support by the device. Secure memory support key wraping feature |
Secure Boot | : Secure boot support by the device |
Parameters | Specification |
---|---|
Operating Voltage | : 5V +/- 5% (USB Powered Device) |
Operating Current | : < 90 ma |
Stand by Current | : 50 mA |
Interface | : USB 2.0 |
Parameters | Specification |
---|---|
Operating Temperature | : 0 to 50 °C |
Storage Temperature | : 0 to 50 °C |
Humidity (Operating / Storage) | : < 90% RH, Non-condensing |
Parameters | Specification |
---|---|
Biometric Data Interchange Format | : ISO 19794-2 for minutiae & ISO 19794-4 for Image Template in Encrypted PID Data Block |
Environmental, Health and Safety | : RoHS |
Safety | : EN/IEC 62368-1, IS 13252 (Part 1) |
EMI / EMC Compliance | : CE, FCC Part 15B |
Image Quality Complaince | : FBI PIV *, STQC * |
IP Rating | : IP54 |
Device Driver | : WHQL certified |
Operating System | : Windows x86 & x64, Linux, Android |
Click here to download
Platform | Driver | RD Service |
Windows | Will be sent on your email upon placing an order on our website | Will be sent on your email upon placing an order on our website |
Android | Provided by specific vendor only. | Download RD Service |
We are the Authorised Distributor of Mantra Softech India Private Limited to sell this device online. If you buy the device from online marketplaces like Amazon, Flipkart or other online sites then you can not claim warranty from Mantra. And this might be the reason that you may see a little price difference on our and other websites as we sell only genuine and 100% brand new devices.
Mantra devices comes with free 1 year RD service and 1 year warranty. In case you need to extend RD Services and Warranty, you may choose 2 years or 3 years option. Where 2 years means total 2 years of RD Service/warranty and 3 years means total 3 years of RD Service/ warranty from the date of purchase of device.
You can contact the Mantra dedicated technical support team at 079-49068000. They will assist you with all your technical queries related to your device.
If your device is under warranty, Mantra will either repair or replace your device for free. In case it is out of warranty, they will tell you the amount you have to pay to repair the device if its possible to repair. For both cases, you need to raise a RMA request at mantra website. Click here to raise a RMA request now.
